1-year/1000 hours Warranty with Free parts and service guidance!
Master industrial generator sets are fully integrated power generation systems that provide optimum performance, dependability, and versatility for standby and prime power applications.
Prime power
This rating is for continuous electrical power supply (at variable load). There is no limit on the annual hours of operation, and 10% overload power can be supplied for 1 hour in 12.
Standby power
This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.

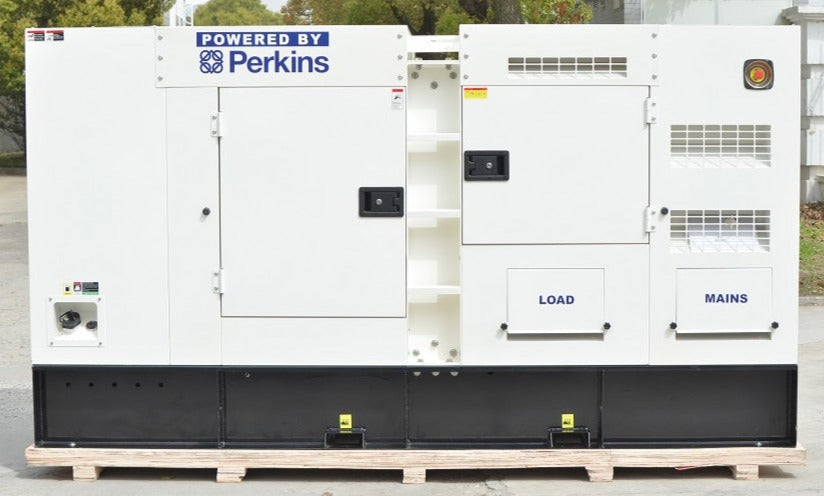

Enclosure Type
Soundproof/Weatherproof Canopy (sound and weather protection canopy)
Perkins Engine Technical Data
Engine Model |
1106D-E70TAG3 |
Number of Cylinders |
6 cylinders, Vertical in line |
Cycle |
4 stroke |
Aspiration |
Turbocharged Aftercooled |
Combustion System |
Direct Injection |
Bore*Stroke |
105mm*135mm |
Displacement |
7L |
Compression ratio |
16.8:1 |
Prime power/Speed |
170kW/1800rpm |
Standby power/Speed |
191kW/1800rpm |
Speed Governor |
ECM |
Cooling System |
Forced liquid cooling cycle |
Steady speed drop |
≤1% |
Fuel Consumption at 100% Load |
212g/kW h |
Starter Motor |
DC24V |
Alternator |
DC24V |
Stamford Alternator Technical Data
Alternator Model |
UCI274E CSA Approved |
Prime power |
150kW |
Frequency/Speed |
60Hz/1800rpm |
Exciter type |
Single-bearing, Brushless, Self-excited |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation Grade |
H |
Protection Grade |
IP23 |
Phase |
3 |
Deepsea Control Panel Technical Data
| Deepsea Control Panel Model: DSE6020 |
|
The control module gives digital readouts of:
The control module has indicators for failure information:
Automatic shutdown occurs under:
|
Features
- Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load, 100% load, 110% load and the checking and proving of all control and safety shut-down functions
- 24V DC start motor
- Equipped 24V high-performance maintenance-free lead-acid starting batteries and connecting with cables
- Equipped with industrial silencer and flexible exhaust hose
- Designed to Comply with ISO8528/GB2820
- Powered by a top-tier engine, alternator, and control panel
- 8 hours base fuel tank
- Relay Brand: Top-of-the-line Siemens APT
- Micro Brand: LS
- Wire Pipes: PA Corrugated pipes
Options/Add-Ons Available
