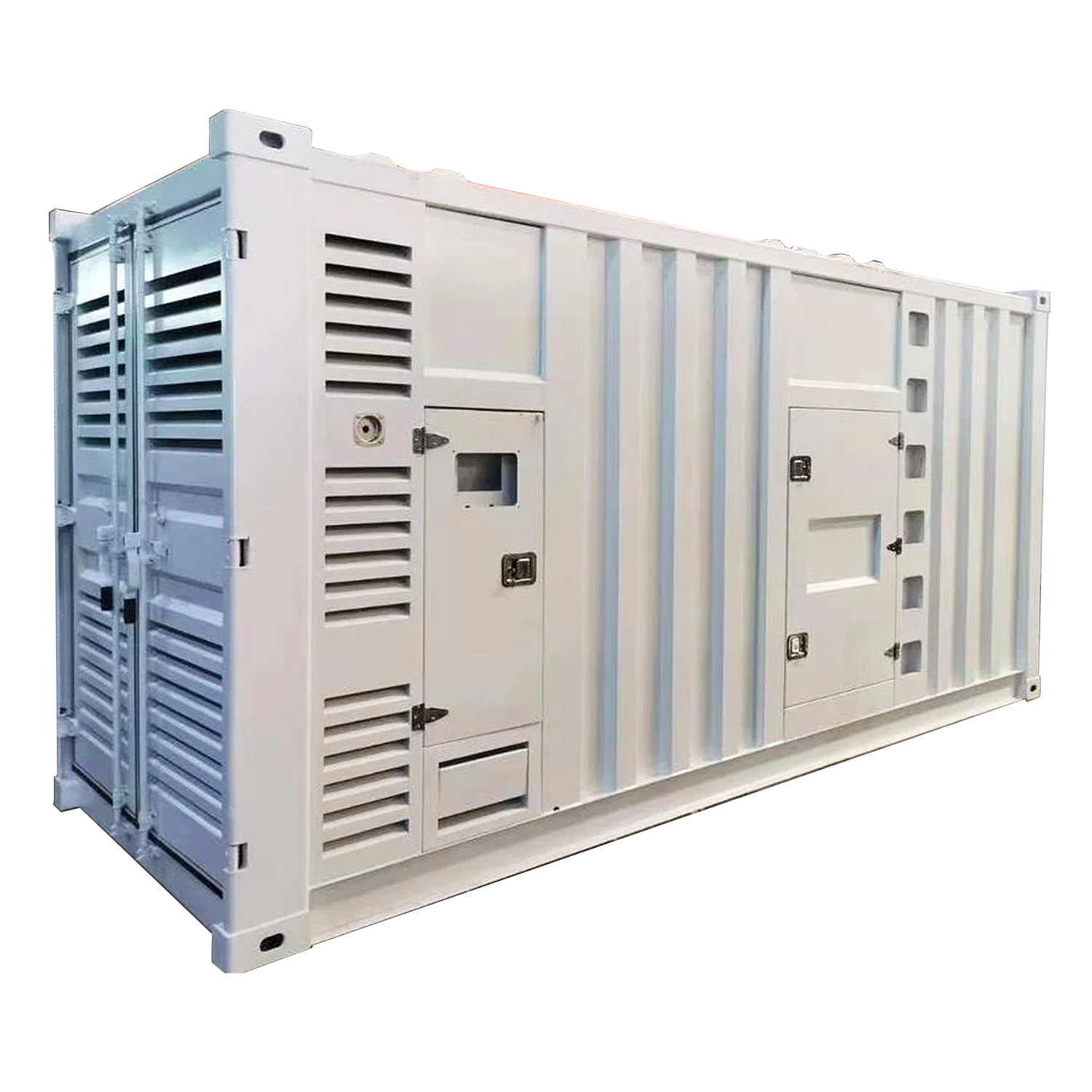

500 kW Prime Power Natural Gas Generator (480/277V Three Phase 60Hz)

500 kW Prime Power Natural Gas Generator (480/277V Three Phase 60Hz)

Regular price
$229,999.99
Sale price
$229,999.99
Regular price
$250,000.00
Sold out
Unit price
per
Shipping calculated at checkout.

*All Pictures shown are for illustration purposes only. Actual product may vary due to enhancement*

8 - 12 Week Lead Time

1-year/1000 hours Warranty with Free parts and service guidance!

Master industrial generator sets are fully integrated power generation systems that provide optimum performance, dependability, and versatility for standby power, prime power and continuous power applications.

Powered by W. Baudouin Engine, Stamford Alternator, and Deepsea Control Panel

Included Features

  • Technologically advanced Remote Wifi Controller
  • Next-Generation Brushless Stamford CSA Approved Alternator
  • Inbuilt Webasto Style Coolant Heater to prevent cold starts and increase the engine's longevity
  • Silent Soundproof Weather Protection Canopy/Enclosure
  • Standard Configuration (including but not limited to): High-Performance Circuit Breaker, Aluminum 50° Radiator, Pressure Regulating Valve, DN50 Flange, Maintenance Free Battery, Battery Connector, Shock Absorbing Pad, Linear vibration isolators between base and engine-generator, Muffler, Jacket Heater, Gas Leak Alarm, Explosion-Proof Lamp.

Prime power

This rating is for continuous electrical power supply (at variable load). There is no limit on the annual hours of operation, and 10% overload power can be supplied for 1 hour in 12.

Standby power

This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.

Features

  • Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load, 100% load, 110% load and the checking and proving of all control and safety shut-down functions
  • 24V DC start motor
  • Equipped 24V high-performance maintenance-free lead-acid starting batteries
  • Equipped with industrial silencer and flexible exhaust hose
  • Designed to Comply with ISO8528/GB2820, NEC, CEC

W. Baudouin Engine Technical Data

Model

12M26

Manufacturer

W. Baudouin

Number of Cylinders

12 Cylinders

Cylinder Arrangement

V-Type

Aspiration

Turbocharged and Air-to-Air Chargecooled

Bore x Stroke (mm x mm)

150 x 150

Displacement

31.8 L

Compression Ratio

11.5:1

Natural Gas Consumption Rate

≤0.32 m3/kW.h

Cooling System

Forced Liquid Cooling Cycle

Stamford Alternator Technical Data

Alternator Manufacturer

Stamford

(UL/CSA Approved)

Power

500 kW

Frequency/Speed

60Hz/1800rpm

Exciter Type

Brushless, Self-excited

Power Factor

0.8

Voltage Adjust Range

≥5%

Voltage Regulation NL-FL

≤+1%

Insulation Grade

Protection Grade

IP23

Phase

3

Deepsea Control Panel Technical Data

Model
DSE (UL/CSA Approved)

The control module gives digital readouts of (Including but not limited to):
  • Generator voltage
  • Output frequency
  • Engine speed
  • Battery voltage
  • Engine hours run

The control module has indicators for the following failure information (Including but not limited to):
  • Overspeed/underspeed
  • Emergency stop
  • Low oil pressure
  • High water temperature
  • Failure to start
  • Battery charger failure

Automatic shutdown occurs under (Including but not limited to):
  • Low engine oil pressure
  • High engine water temperature
  • Overspeed/underspeed
  • Failure to start after three attempts

Options/Add-Ons Available
