1-year/1000 hours Warranty with Free parts and service guidance!

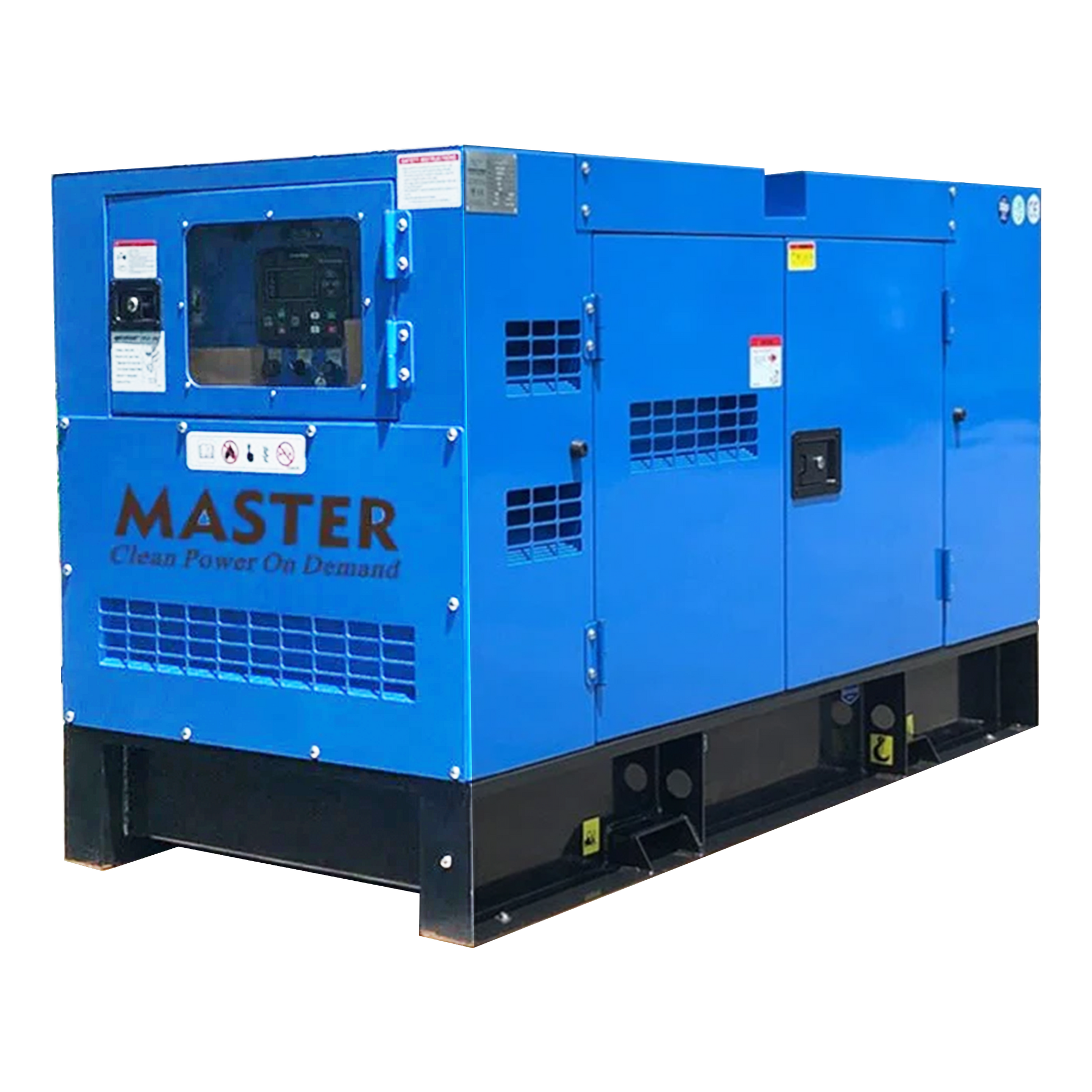

Master industrial generator sets are fully integrated power generation systems that provide optimum performance, dependability, and versatility for standby and prime power applications.
Powered by Master Certified Diesel Engine, Stamford CSA Approved Alternator and SmartGen control panel
Included Features:
-
Technologically advanced Remote Wifi Controller
-
Next-Generation Brushless CSA Approved Alternator
-
Inbuilt Oil/Coolant Heater to prevent cold starts and increase the engine's longevity.

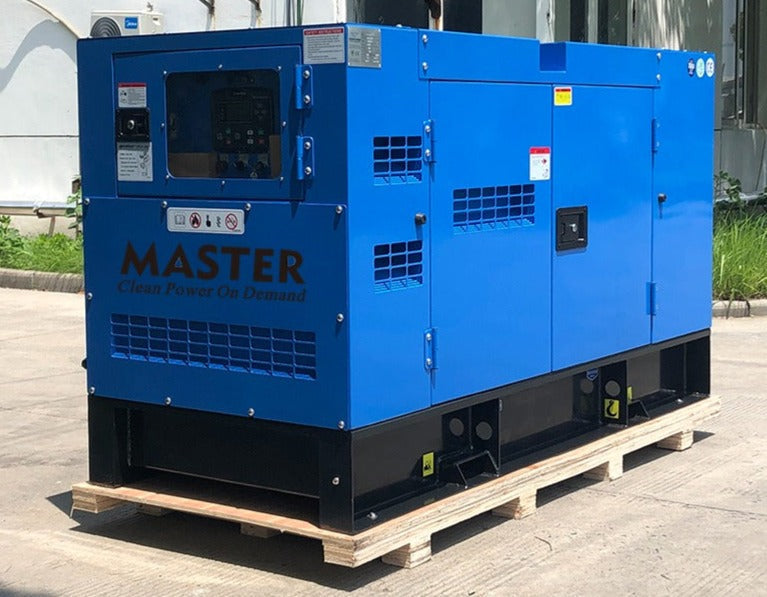

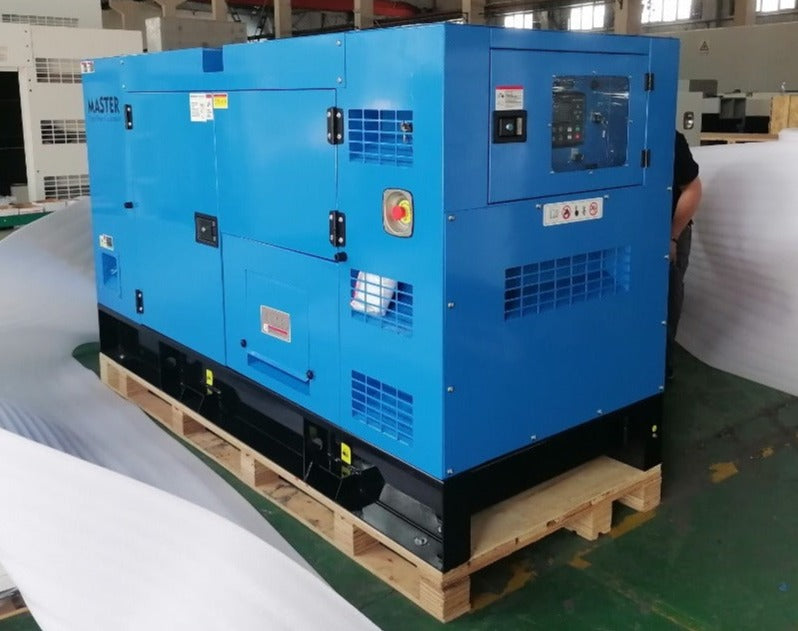

- Silent Soundproof Weather Protection Canopy/Enclosure
- Electronic Speed Governor
- Base Fuel Tank
Prime power
This rating is for continuous electrical power supply (at variable load). There is no limit on the annual hours of operation, and 10% overload power can be supplied for 1 hour in 12.
Standby power
This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.
Features:
Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load, 100% load, 110% load and the checking and proving of all control and safety shut-down functions
12V DC start motor
Equipped with 12V high-performance maintenance-free lead-acid starting batteries
Equipped with industrial silencer and flexible exhaust hose
Designed to Comply with ISO8528/GB2820

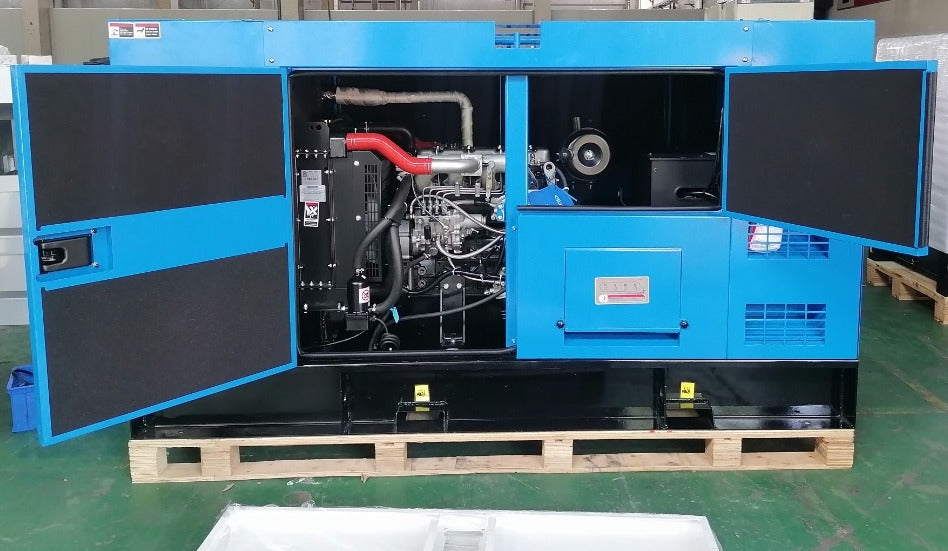

Master Certified Engine Technical Data:
Number of Cylinders: 4 Cylinders Inline
Cycle: 4 Stroke
Aspiration: Natural
Bore x Stroke: 95 mm x 105 mm
Displacement: 2.977 L
Compression Ratio: 18:1
Engine Prime Power/Speed: 29 kW / 1800 rpm
Engine Continuous Power/Speed: 29 kW / 1800 rpm
Speed Governor: Mechanical
Cooling System: Forced water cooling cycle
Steady Speed Drop: ≤1%
Fuel Consumption at 100% of Generator Set Prime Output: 7.31 L/H
Starter Motor: DC12V
Alternator: DC12V
Stamford CSA Approved Alternator technical data:
Model: PI144E CSA Approved
Max Power: 25 kW
Frequency/Speed: 60 Hz / 1800 rpm
Exciter type: Single bearing, Brushless, Self-Excited
Power factor: 1 P.F
Voltage adjust range: ≥5%
Voltage regulation NL-FL: ≤+1%
Insulation Grade: H
Protection Grade: IP23
Phase: 3

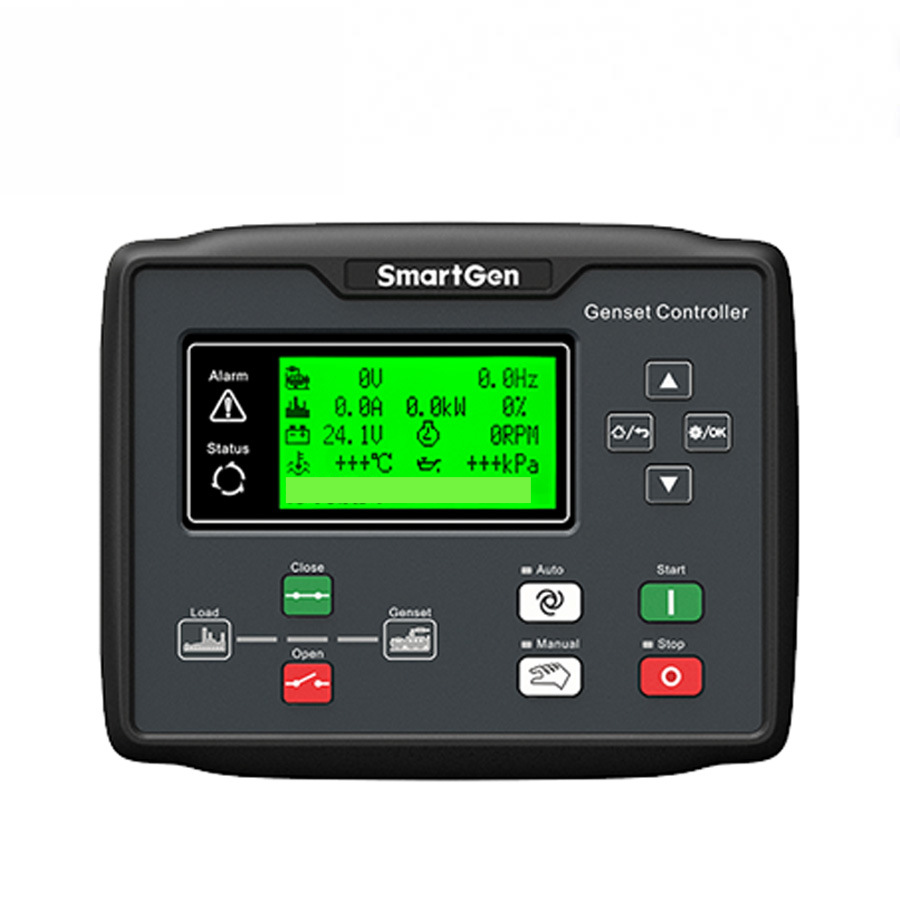

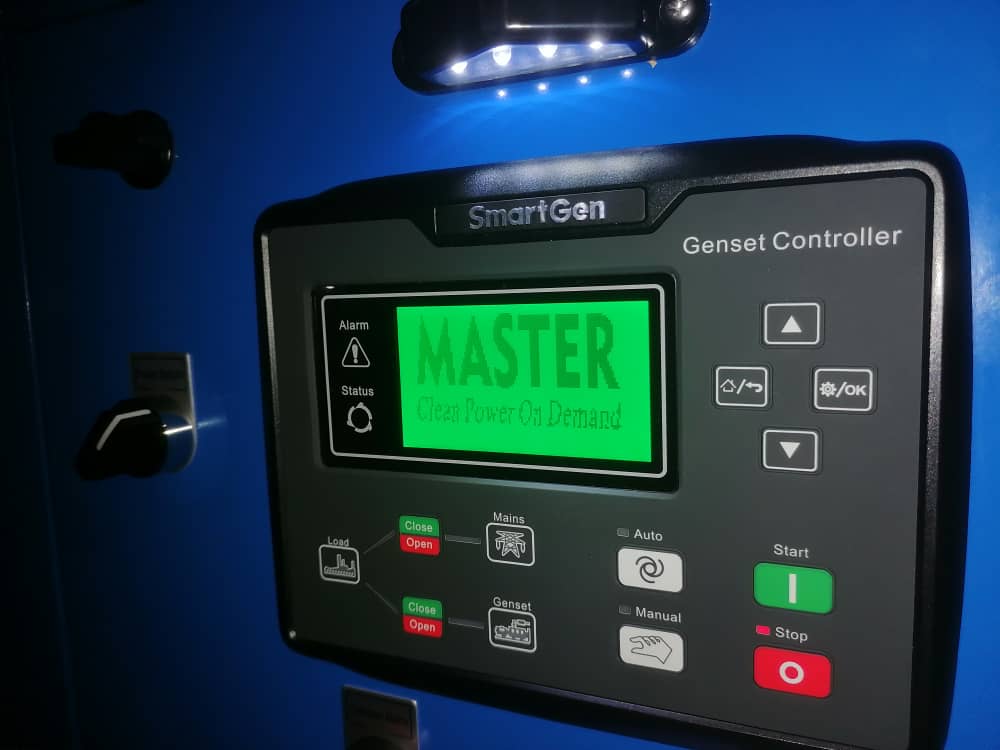

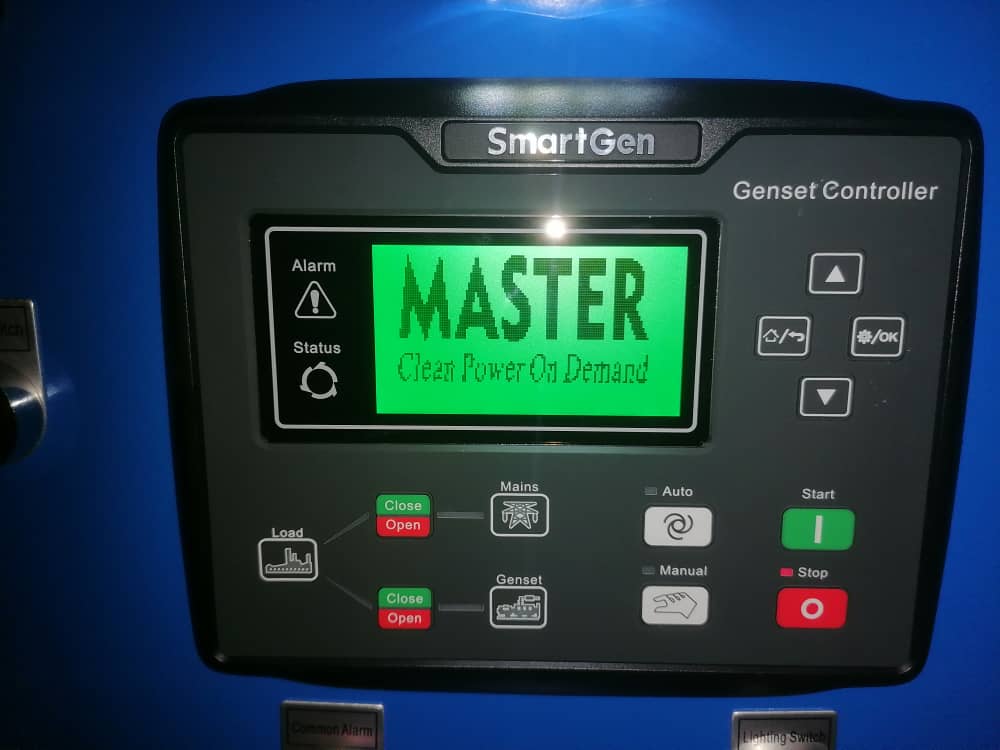

SmartGen Control Panel Technical Data:
Model: HGM6110
The control module gives digital readouts of:
Generator voltage
Output frequency
Engine speed
Battery voltage
Engine hours run
The control module has indicators for failure information:
Overspeed/Underspeed
Emergency stop
Low oil pressure
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure
High engine water temperature
Overspeed/Underspeed
Failure to start after three attempts
8-10 Weeks Lead Time
